Overview

Infrared sensor activated mains flushing for WCs.

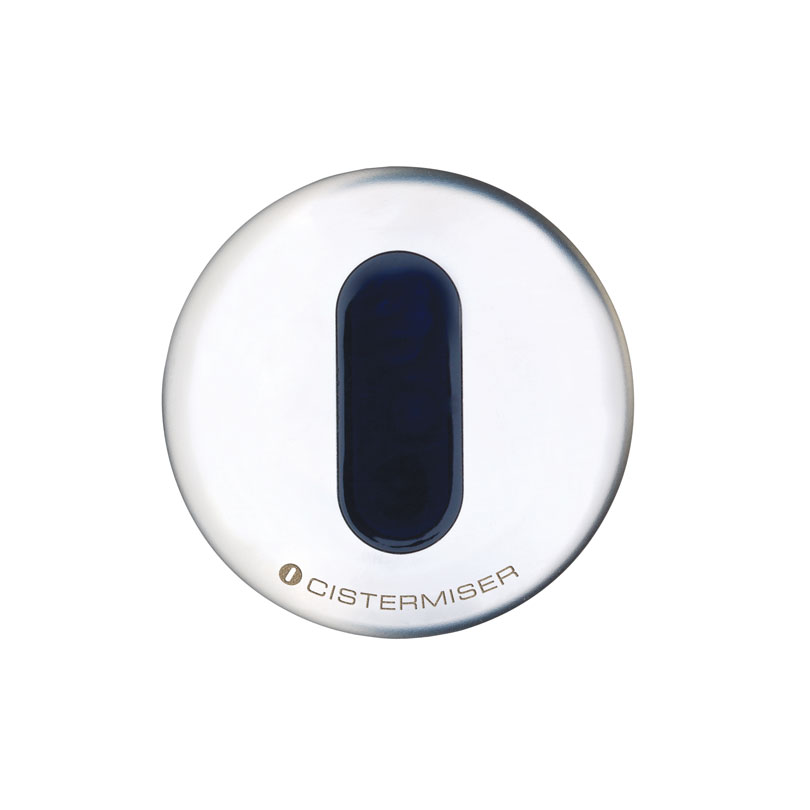

Easyflush Direct is an electronic flushing system for WCs that removes the need for a WC cistern, by taking its water feed straight from the mains supply.

This means that there is no cistern to be refilled and second flush can be activated without delay. A hygiene flush can also be activated to maintain the cleanliness of the WC.

Why buy this product?

This great product is designed for commercial washrooms and gives greater functionality in terms of toilet operation. Firstly, by converting the toilets to mains feed operation, they no longer need time to refill their cisterns after flushing. This feature will be of particular benefit to medium – high footfall washrooms which suffer from frequent queuing. The increased efficiency should result in a quicker throughput of customers.
In addition to this key benefit, there are other secondary benefits such as hygienic hands-free flushing activation and adjustable flow rates to ensure effective flushing in terms of velocity and splashback. Furthermore, the removal of cisterns will free up spaces in service voids and make access to essential services easier.

How it works

Easyflush Direct includes a valve, DC pipe interrupter and sensor. When the sensor is activated, the valve is activated for between 2 and 3.5 seconds, supplying water to flush the WC direct from the mains water supply. After this period the valve closes and the flush is complete, but can be activated again immediately.
Easyflush Direct is fitted with a flow regulator that will limit the flow rate to 100 lpm. However, additional flow regulators for 90 LPM and 125 LPM are included to regulate the flow rate further, if required.
EasyFlush Direct is powered by a 6V DC mains adaptor which can be installed behind service panels. Also available as an optional extra is a multi-product mains power supply unit (PSUC) to power up to 20 sensors from a single fused spur.
Please refer to the manufacturer’s data sheet / brochure for technical information regarding the configuring the flush performance with respect to flow rates and bowl sizes.

There are two version to suit different applications:

Choosing the right product

Easyflush Direct Wave (EFD) is operated by the user bringing their hand towards the infrared sensor. A part flush is triggered by holding one’s hand in place near the sensor for about 1 second and a full flush is triggered by a slightly longer hand pass.
Easyflush Direct Walkaway (EFD/WALK) is activated when a user stands up or leaves the cubicle, but it can also be activated by the user bringing their hand towards the sensor. A part flush is triggered by short user occupancy and a full flush by long user occupancy.

Summary

• No cistern required – saves space
• No inlet valves – reduced installation cost
• No cistern refill – immediate re-flush for busy areas
• Infrared sensor operated (hand motion-activation)
• Hygiene flush to maintain cleanliness
• Range of flow rates
• Compliant with water regulations. WRAS approved.
• BREEAM Wat 01 compatible product
• Standard 1 year warranty can be extended to 3 years by registering the product online at Cistermiser's website
