Overview

Easyflush EVO has been specifically designed to save water and be sustainable. There is no flush seal below the water line, so unlike traditional WC flush valves it will not leak due to debris, scale or degradation of the seal.

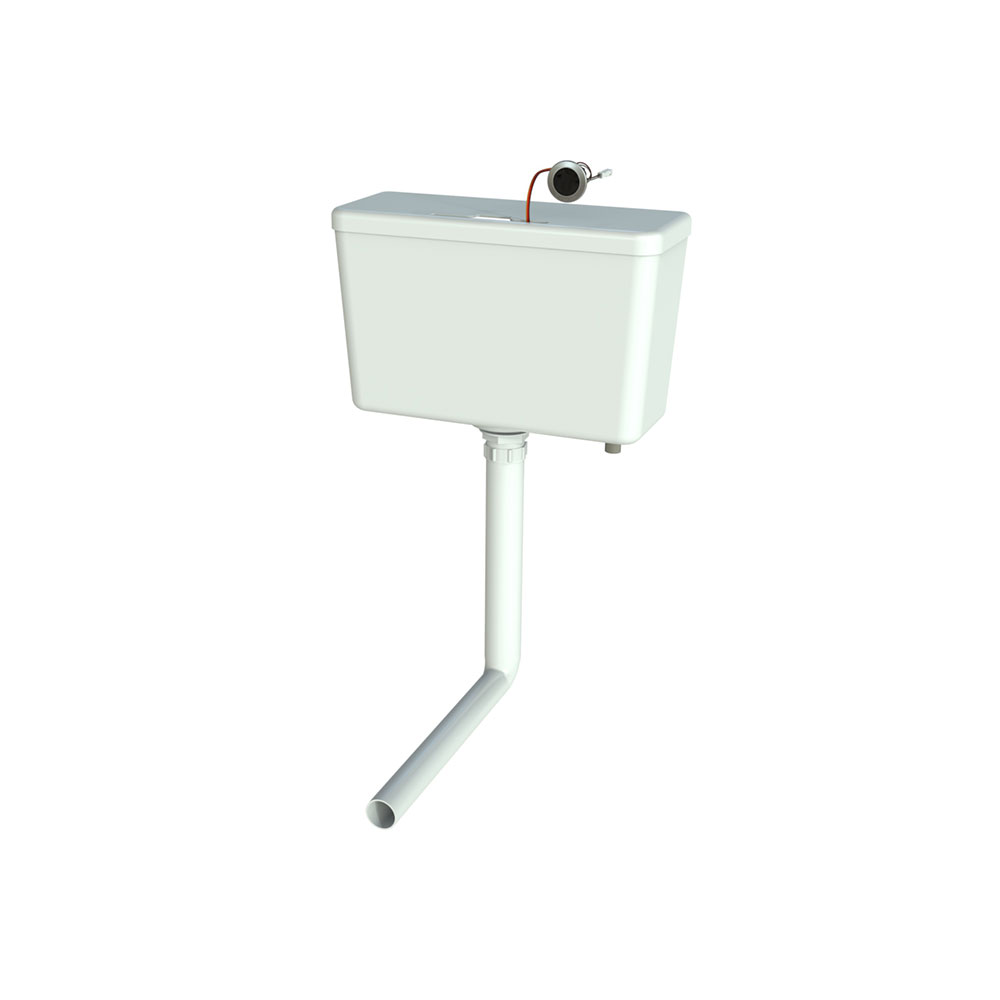

The Easyflush EVO Cistern delivers the Easyflush EVO non-touch flush valve, complete with a delayed action fill valve, and a concealed cistern with a 1.5” flush pipe outlet and flush cone.

Why buy this product?
The unique, patented design means that no other product can offer the same level of confidence or addresses the challenges of leaking loos in the same way.

A leaking loo can waste up to 80,000 litres of water per year. No leaks could result in approximate savings of £240 +.

How it works:
Easyflush EVO is a patented siphon WC dual flushing valve designed with a no flush seal below the water line. It is operated by the user bringing their hand close to an infrared sensor. The sensor can be set to WAVE or WALKAWAY modes. The flush can also be set to single flush or dual flush.

The EVO + Cistern is ideal for new build application or for a retrofit application where the standalone Easyflush EVO dual flush valve is not compatible with the dimensions of the existing cistern.

• The Easyflush EVO revolutionises WC flushing by bringing together the benefits of non-touch WC flushing.
• Hygienic hands-free operation
• Easyflush is powered by 4 x 1.5V AA (LR6) batteries or a 6V DC mains adaptor with a 1 amp fuse spur required
• Battery life equals 27,000 activations
• This comes with a 1.5” flush pipe outlet
• Also available as an optional extra is a multi-product mains power supply unit (PSUC) to power up to 20 sensors from a single fuse spur
• Wave/walkaway sensors meet DDA requirements and are part M compliant
• Operating pressure: Easyflush dual flush valve is not dependent on water pressure. Fill valve (supplied with EVO CISTERN) 0.1bar – 10 bar.
• WRAS approval pending
